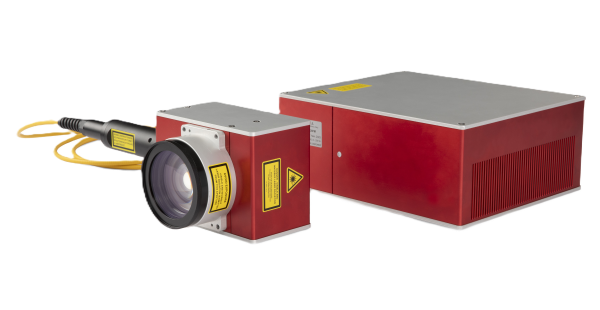

MP30/60/100FM - The versatile fiber laser marker for integration
The MP-FM series is a family of general-purpose fibre laser markers available in different power ratings: 30W, 60W and 100W to meet different production needs. It stands out for its excellent marking performance, made possible by MOPA technology, which delivers precise, high-contrast results on a wide range of materials, including plastics and metals. Thanks to the flexibility of the pulse settings, it is ideal for applications requiring precise details, colour marking or minimal thermal impact. All this comes with a particularly competitive price, making it a smart choice for manufacturers looking for quality and affordability.
Technical Specifications
| Model | MP30FM, MP60FM, MP100FM | |
| Part number | MX3MF30MPFM00, MX3MF60MPFM00, MX3MFA0MPFM00 | |
| Product type | Multi-purpose Fiber Laser Marker | |
| Safety class | Class 4 laser product | |
| Mode of operation | Master Oscillator Power Amplifier | |
| Output power | 30, 60, 100 | W |
| Wavelength | 1060-1080 | nm |
| Repetition rate | 1-3000 | KHz |
| Pulse energy | 800, 1500, 1500 | µJ |
| Pulse duration | 2-500 | ns |
| Peak power | 12, 20, 20 | KW |
| Beam quality | <1.5, <1.8, <1.8 | M² |
| Aiming beam | Semiconductor laser @ 635nm, 3mW, class 2 laser product | |
| Cooling method | Forced air | |
| Working temperature | 10-40 | °C |
| Storage temperature | 0-40 | °C |
| Relative humidity | <85 (non condensing) | % |
| Enclosure rating | NEMA type 2 (indor use only) | |
| Ingress protection | IP2x | |
| Equipment mobility | Stationary | |
| Head dimensions | 156x114x97 | mm |
| Head weight | 1.5 | Kg |
| Rack dimensions | 200x300x136 | mm |
| Rack weight | 6, 12, 13.5 | Kg |
| Operating voltage | 24Vdc±10% | V |
| Maximum current | 6, 11, 16 | A |
| Power consumption | 150, 350, 600 | W |
| Protection class | Class I (safety earth) | |
| Lens configurations | 100L, 160L, 254L (on request: 330L, 420L) | |
| Marking area | 50x50, 90x90, 120x120 | mm² |
| Working distance | 116±0.5, 178±0.5, 280±1 | mm |
| Connectivity | USB, Ethernet | |
| Software | Premium - all features included | |
| Certifications |  | |
| Safety requirements | EN60825-1 - EN62368-1 (where applicable) | |
| Electromagnetic compatibility | EN61000-6-2 - EN61000-6-4 (industrial environment) |
This is a component intended for incorporation into a laser product and such requires additional features for laser safety and to comply with IEC 825 and with 21 CFR 1040-10 regulartions. Product specifications may be subject to change without notice.
FAQ
The M-Pix MOPA MP30/60/100FM range includes three power levels: 30W, 60W and 100W based on the MOPA technology: Master Oscillator Power Amplifier. This architecture allows independent control of frequency and pulse duration, offering superior versatility for industrial applications that require quality, not just speed.
The choice depends on specific production needs. The 30W is ideal for precision applications and sensitive materials. The 60W balances speed and quality for medium production volumes. The 100W is optimized for high speeds, more challenging materials and deep engravings on metal. The MOPA versatility (Master Oscillator Power Amplifier) allows adapting parameters to each scenario, not just the nominal power.
Annealing is a surface treatment process that modifies the structure of carbon-rich metals without removing material. The MP-FM is capable of performing annealing on stainless steels and special alloys, creating black or colored markings resistant to corrosion and chemical contact. This is essential for medical and automotive sectors where the surface must remain intact.
The MP20FM is more compact and optimized for OEM applications. The MP30/60/100FM range is designed to meet a wider variety of applications with higher industrial productivity while maintaining the same thermal control and versatility of the MOPA technology (Master Oscillator Power Amplifier). The choice depends on the desired integration type and particularly on the available space for the marking unit.
The MP-FM offers multiple power levels, versatility, and thermal control. It is the ideal solution for those who need to handle a variety of different applications, heat-sensitive materials, annealing treatments, or high-speed and deep engravings on metals. The compactness of the system facilitates integration into existing production lines.
